Author: He XingChen

Last Updated: 2026-02-07

Models Overview

SeisPolarity provides a series of deep learning models for seismic polarity classification. All models are implemented using PyTorch and support GPU acceleration.

Available Models

Model	Input Length	Classes
Ross (SCSN)	400	3 (U/D/N)
Eqpolarity	600	2 (U/D)
DiTingMotion	128	3 (U/D/N)
CFM	160	2 (U/D)
RPNet	400	2 (U/D)
PolarCAP	64	2 (U/D)
APP	400	3 (U/D/N)

Loading Models

Pre-trained Models

Load pre-trained models from Hugging Face:

from seispolarity.models import PPNet, RossNet, EqpolarityNet

# Ross model
model = RossNet(num_fm_classes=3)

# Eqpolarity model
model = EqpolarityNet()

# Generic PPNet (for SCSN)
model = PPNet(num_fm_classes=3)

Loading Custom Weights

import torch
from seispolarity.models import PPNet

model = PPNet(num_fm_classes=3)

# Load from checkpoint
checkpoint = torch.load("checkpoints/model.pth")
model.load_state_dict(checkpoint["model_state_dict"])

# Or load directly
model.load_state_dict(torch.load("model_weights.pth"))

Model API

All models in SeisPolarity expose a unified PyTorch interface:

import torch
from seispolarity.models import PPNet

# Create model
model = PPNet(num_fm_classes=3)
model.eval()

# Prepare input
waveforms = torch.randn(10, 1, 400)  # (batch, channels, length)

# Forward pass
with torch.no_grad():
    logits = model(waveforms)
    predictions = logits.argmax(dim=1)  # Get predicted classes

Model Architectures

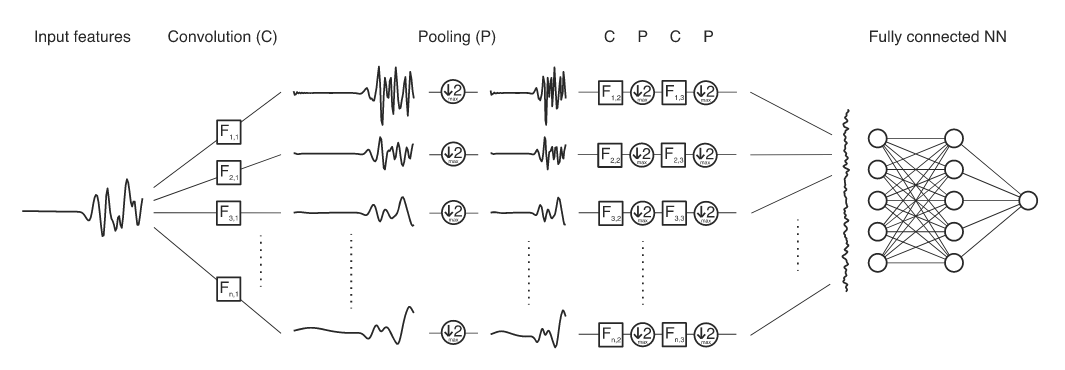

Ross (SCSN)

The Ross model is a CNN-based architecture optimized for SCSN data.

Input: 400 samples (4 seconds at 100 Hz sampling rate)

Architecture:

Convolutional layers with batch normalization
Max pooling
Fully connected layers
Dropout for regularization

from seispolarity.models import PPNet

model = PPNet(num_fm_classes=3)

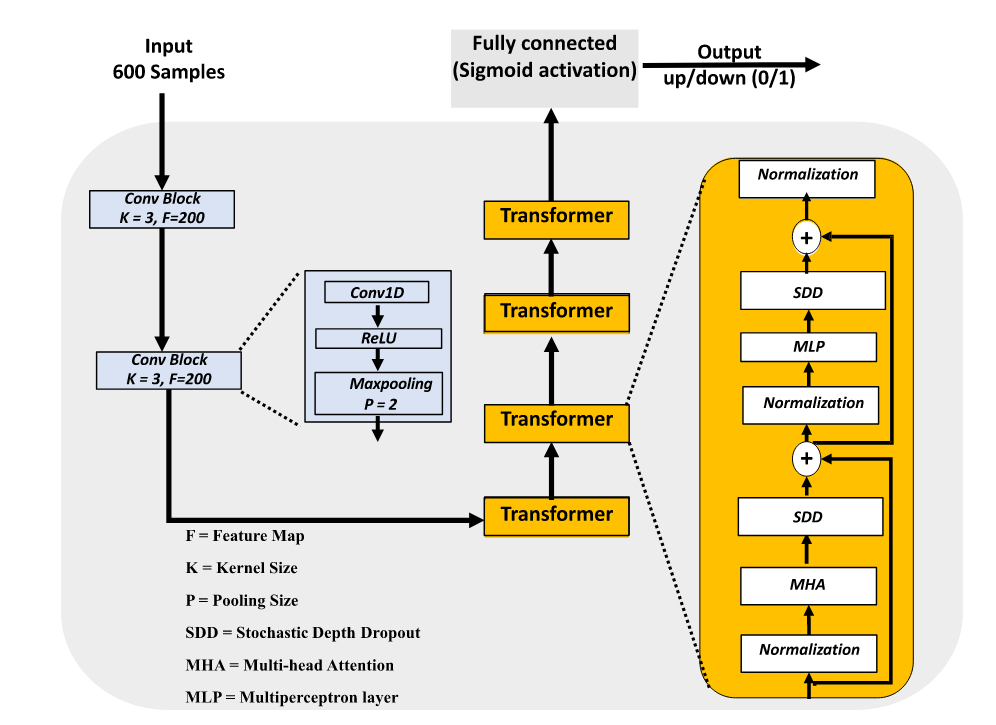

Eqpolarity

Eqpolarity is a deep CNN model for polarity classification.

Input: 600 samples (6 seconds at 100 Hz sampling rate)

from seispolarity.models import EqpolarityNet

model = EqpolarityNet()

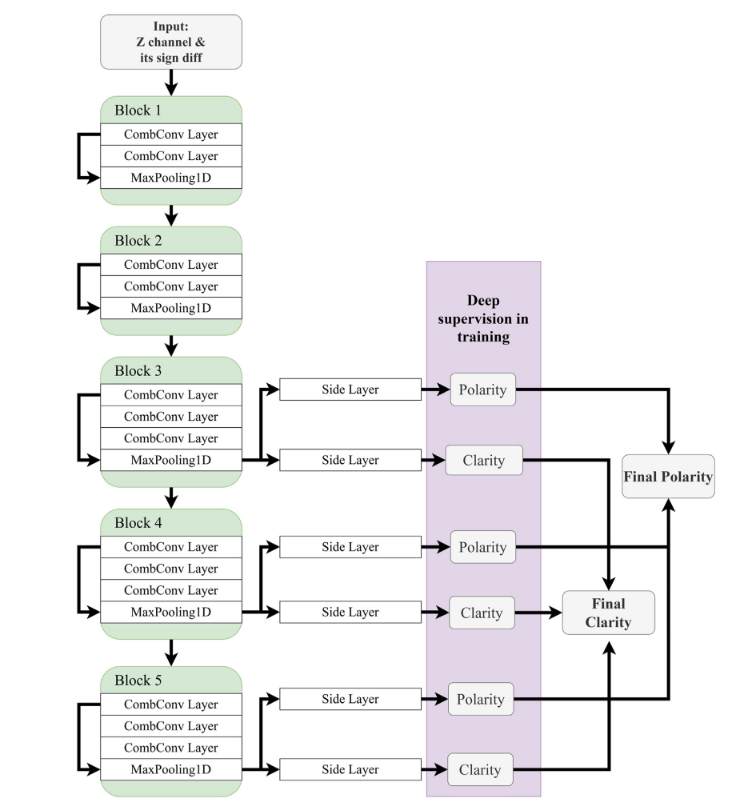

DiTingMotion

Motion-based polarity classification model.

Input: 128 samples (1.28 seconds at 100 Hz sampling rate)

from seispolarity.models import DiTingMotionNet

model = DiTingMotionNet()

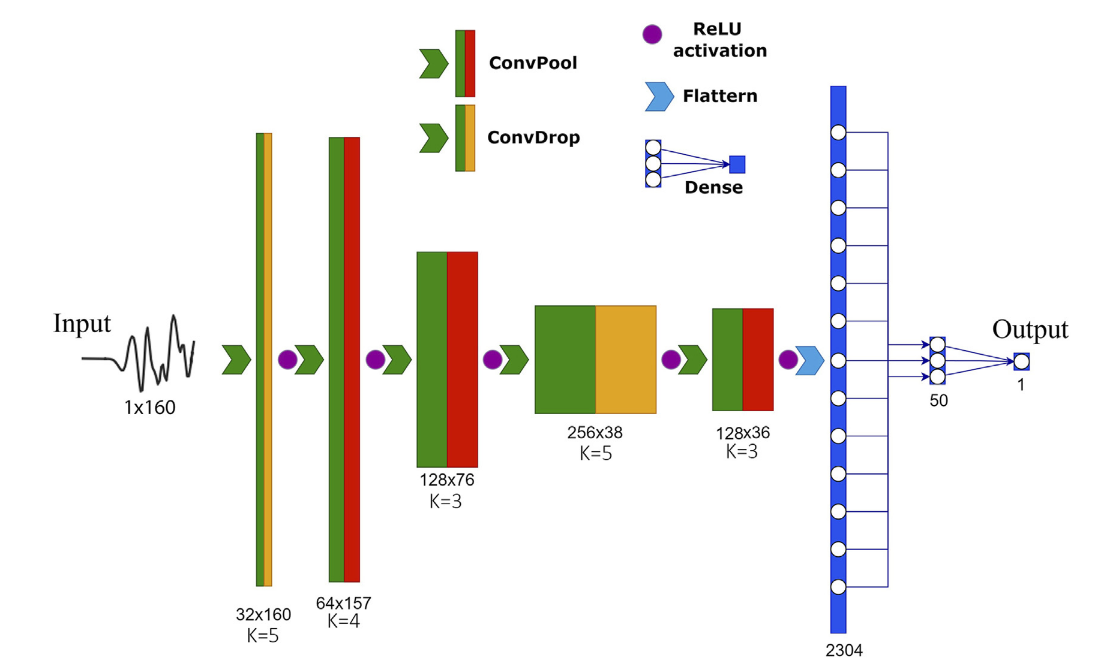

CFM

Custom architecture for polarity detection.

Input: 160 samples

from seispolarity.models import CFM

model = CFM()

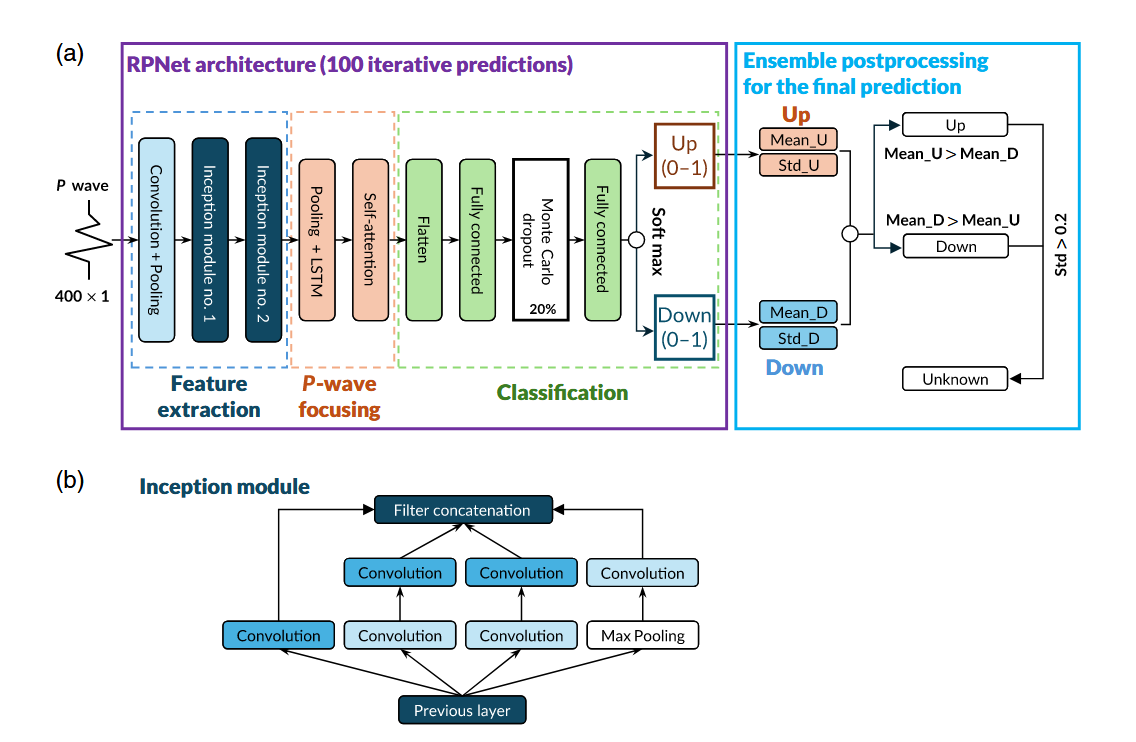

RPNet

Residual Polarity Network.

Input: 400 samples (4 seconds at 100 Hz sampling rate)

from seispolarity.models import RPNet

model = RPNet()

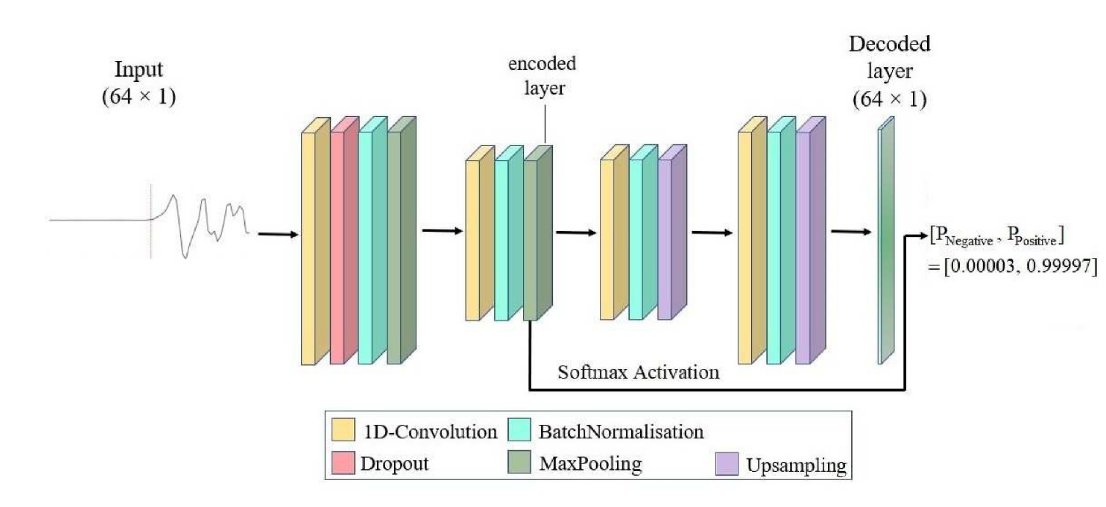

PolarCAP

Lightweight model for polarity classification.

Input: 64 samples (0.64 seconds at 100 Hz sampling rate)

from seispolarity.models import PolarCAP, PolarCAPLoss

model = PolarCAP()
loss_fn = PolarCAPLoss()

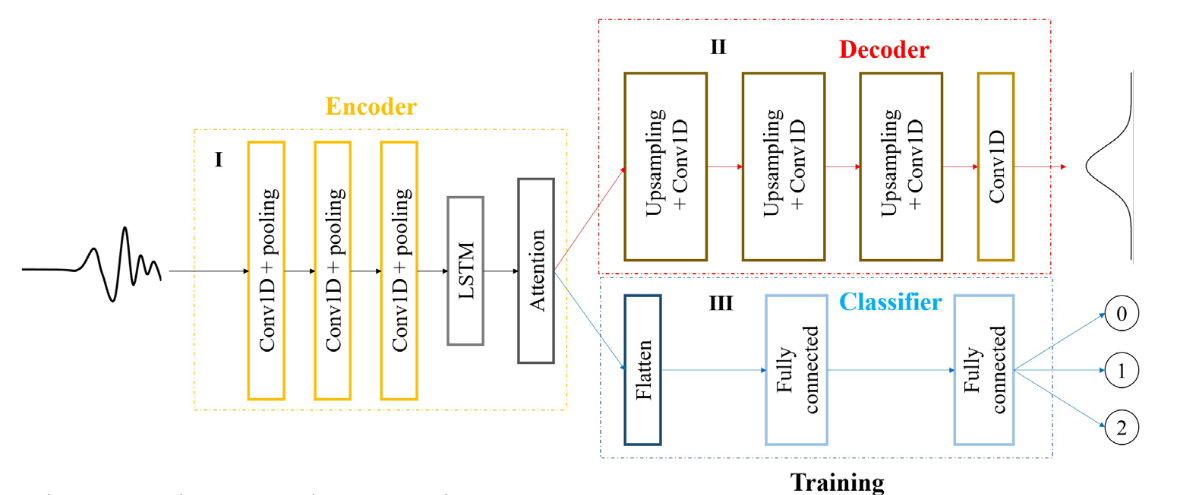

APP

Adaptive Polarity Predictor.

from seispolarity.models import APP

model = APP()

Inference

Batch Inference

import torch
from seispolarity.models import PPNet
from seispolarity import WaveformDataset

# Load model
model = PPNet(num_fm_classes=3)
model.eval()
model.to("cuda")

# Load dataset
dataset = WaveformDataset(path="data.hdf5", name="SCSN")
loader = dataset.get_dataloader(batch_size=1024)

# Inference
all_predictions = []
with torch.no_grad():
    for waveforms, _ in loader:
        waveforms = waveforms.to("cuda")
        logits = model(waveforms)
        predictions = logits.argmax(dim=1)
        all_predictions.append(predictions.cpu())

predictions = torch.cat(all_predictions)

Single Sample Inference

import numpy as np
from seispolarity.models import PPNet
import torch

# Load model
model = PPNet(num_fm_classes=3)
model.eval()

# Single sample
waveform = np.random.randn(400)  # Single waveform
waveform = torch.FloatTensor(waveform).unsqueeze(0).unsqueeze(0)  # Add batch and channel dimensions

# Inference
with torch.no_grad():
    logits = model(waveform)
    prediction = logits.argmax(dim=1).item()

# Interpret result
label_map = {0: "Up", 1: "Down", 2: "Unknown"}
print(f"Predicted polarity: {label_map[prediction]}")

Model Output

Models output logits for each class:

# Raw logits
logits = model(waveforms)  # Shape: (batch_size, num_classes)

# Probabilities (softmax)
import torch.nn.functional as F
probabilities = F.softmax(logits, dim=1)

# Predicted classes
predictions = logits.argmax(dim=1)

Model Download

Pre-trained models are available on Hugging Face:

from huggingface_hub import hf_hub_download
import torch

# Download model weights
model_path = hf_hub_download(
    repo_id="HeXingChen/SeisPolarity-Model",
    filename="ross_scsn.pth"
)

# Load weights
state_dict = torch.load(model_path)
model.load_state_dict(state_dict)

Custom Models

To create a custom model:

import torch.nn as nn
from seispolarity.models.base import BasePolarityModel

class CustomModel(BasePolarityModel):
    def __init__(self, num_fm_classes=3):
        super().__init__(num_fm_classes)
        # Define your architecture here
        self.conv1 = nn.Conv1d(1, 32, kernel_size=5)
        self.fc = nn.Linear(32 * 396, num_fm_classes)

    def forward(self, x):
        # Forward pass
        x = self.conv1(x)
        x = x.view(x.size(0), -1)
        x = self.fc(x)
        return x

For detailed API documentation, see the API Reference.
